Classic


Roll-formed in our UK factory, using a galvanised steel substrate to protect against rusting. Our Classic frame uses Spacepro Hardware’s ‘click-system’, meaning assembly is quick with a sturdy construction.

Multiple bottom wheel and top guide options also allow ‘good, better and best’ differentiation within the range.

Classic


Roll-formed in our UK factory, using a galvanised steel substrate to protect against rusting. Our Classic frame uses Spacepro Hardware’s ‘click-system’, meaning assembly is quick with a sturdy construction.

Multiple bottom wheel and top guide options also allow ‘good, better and best’ differentiation within the range.

| Door Suggestions

This door design offers multiple door configurations from all wood and glass panels to a mix. Below are a selection of designs, but you can add to this based on your needs. Make sure to follow the ‘Technical information’ when calculating any design.

Tap on one of our door designs to see it in use.

| Frame & TRACK Finishes

Choose from our selection of frame finishes.

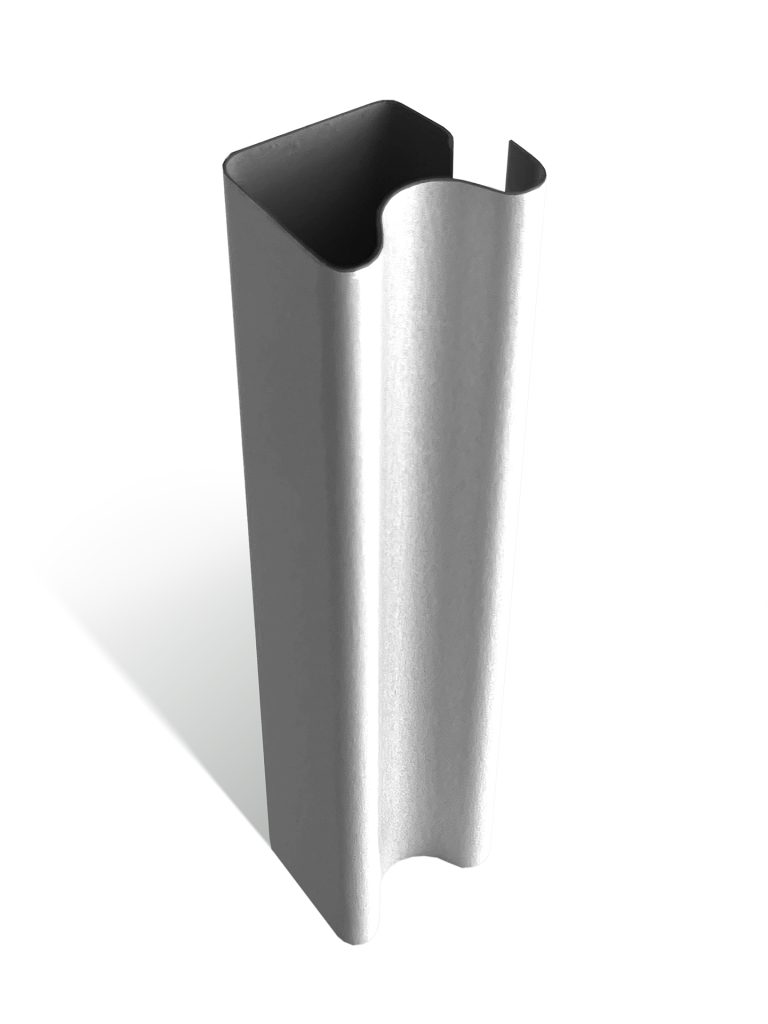

White

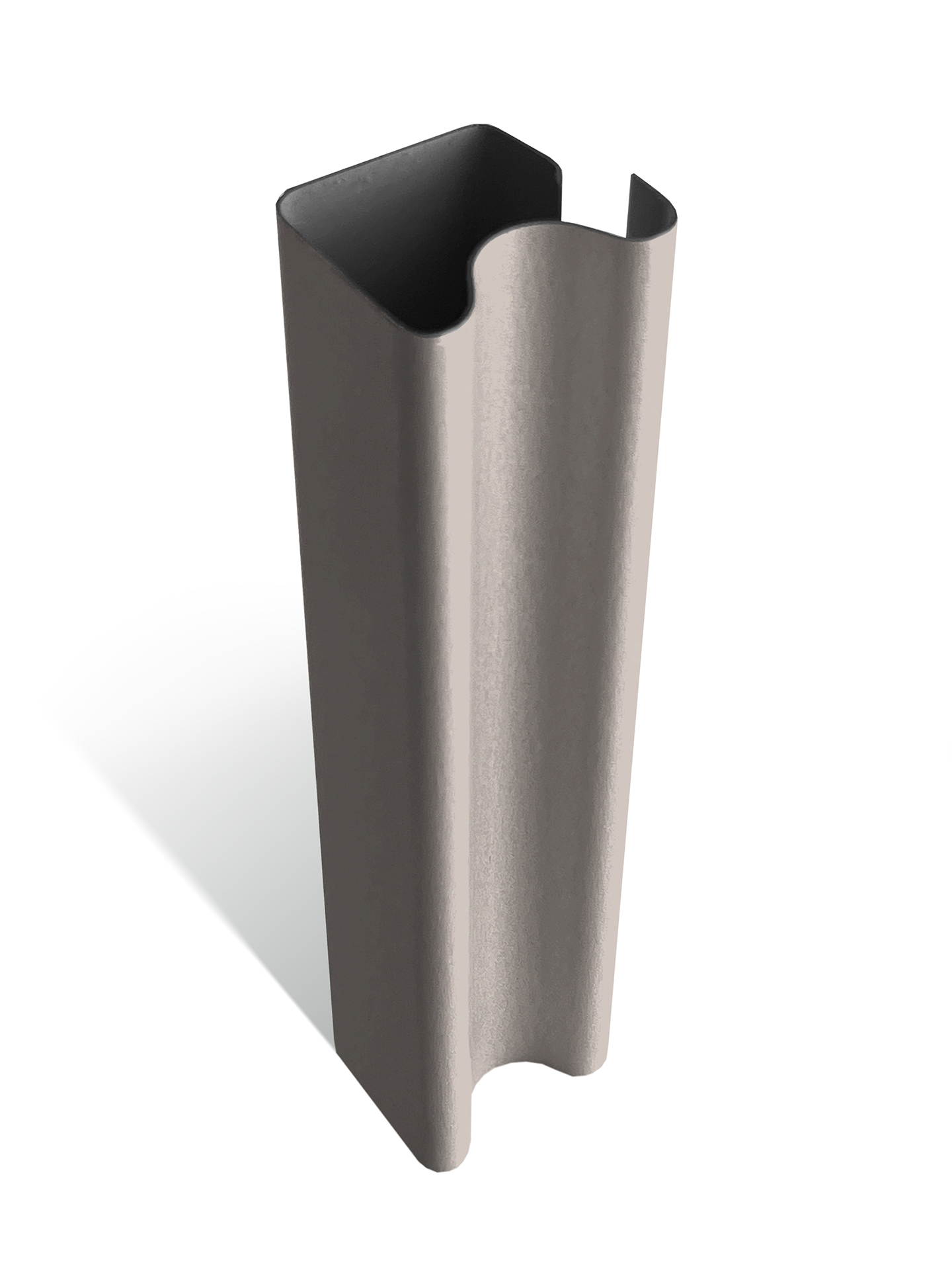

Cashmere

Light Grey

Satin Silver

Stone Grey

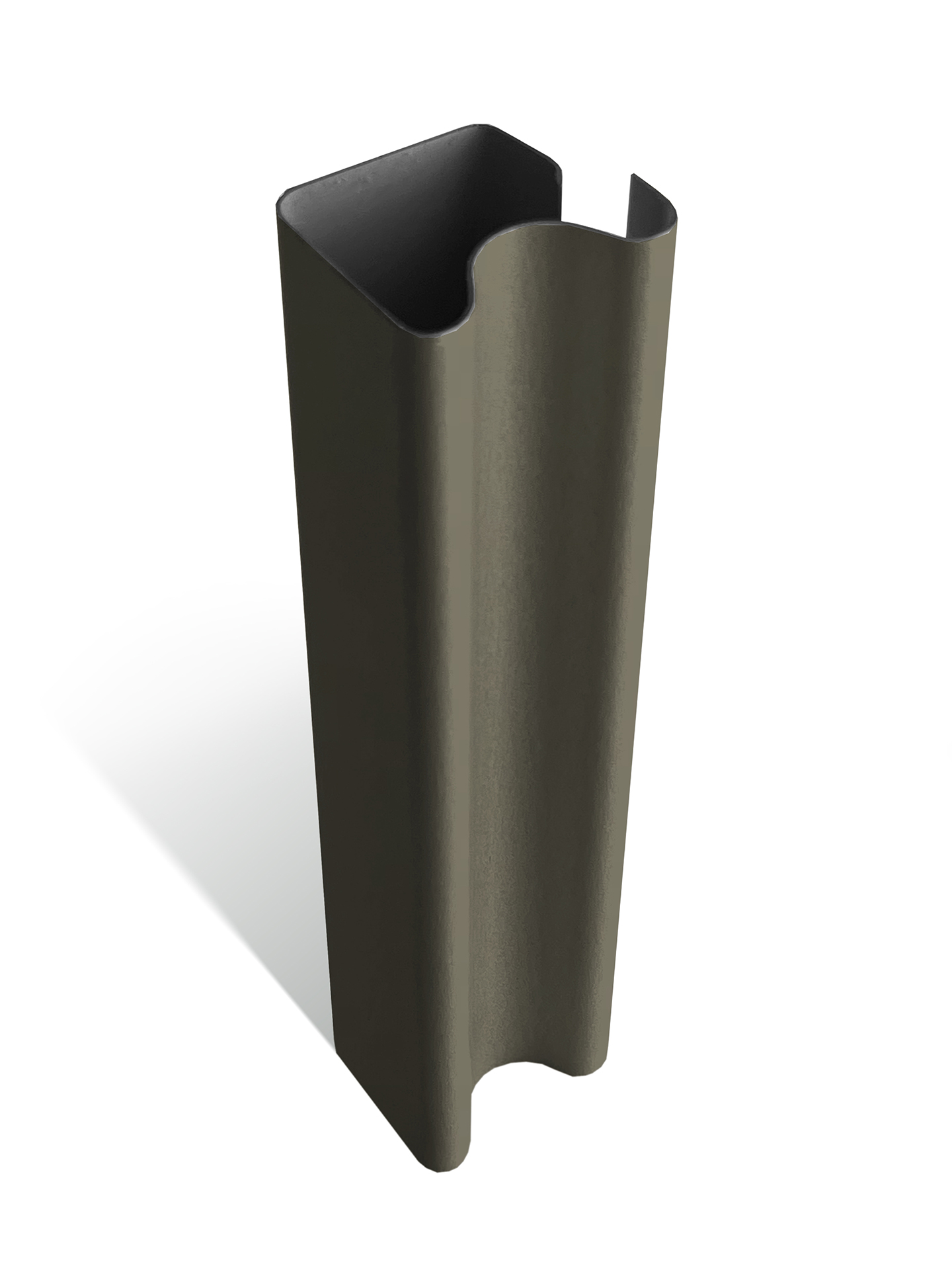

Nickel

Graphite

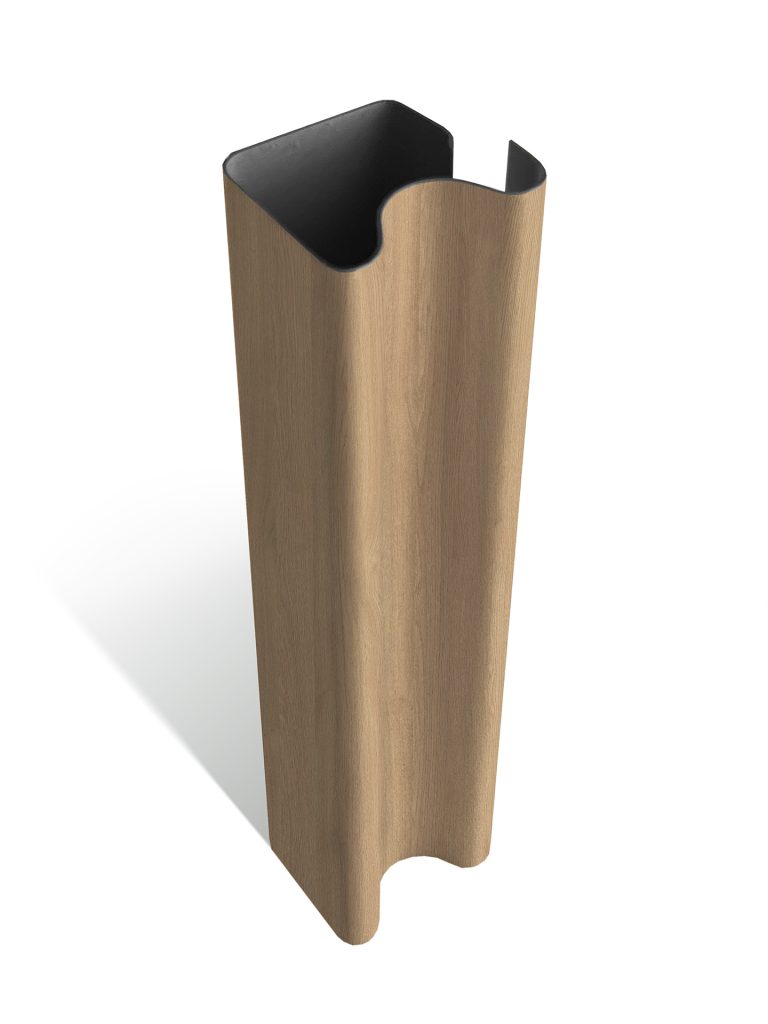

Oak

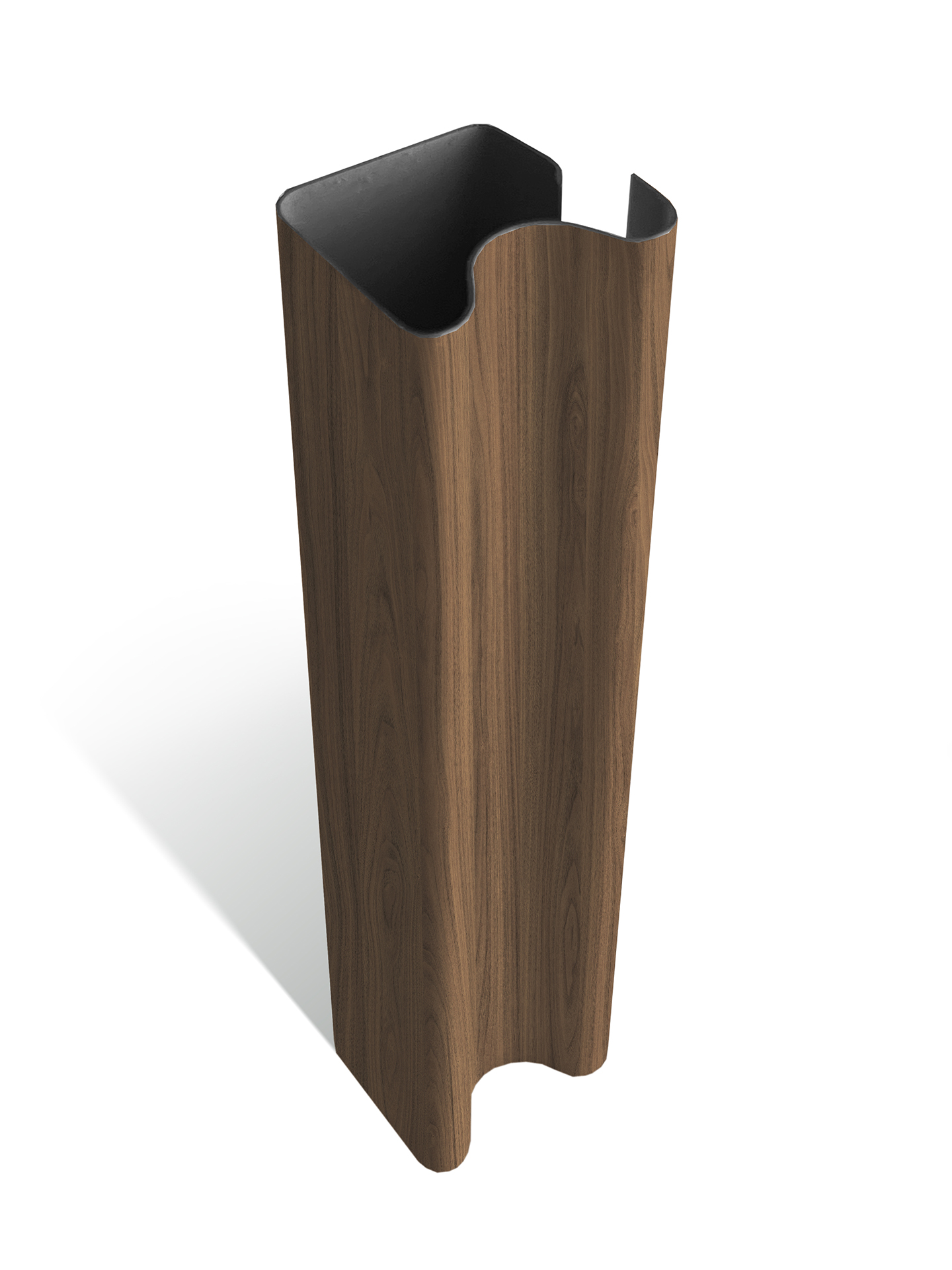

Carini Walnut

White

Cashmere

Light Grey

Satin Silver

Stone Grey

Nickel

Graphite

Oak

Carini Walnut

Our wood effect, laminated finishes use a polypropylene based laminate free from formaldehyde, halogen components and plasticisers.

Our painted finishes boast a highly corrosion-resistant aesthetic polymer coating and achieve a A+ rating against
EN ISO 16000-9 for volatile organic compounds (VOC) and are fully REACH compliant and free from chromates.

Our wood effect, laminated finishes use a polypropylene based laminate free from formaldehyde, halogen components and plasticisers.

Our painted finishes boast a highly corrosion-resistant aesthetic polymer coating and achieve a A+ rating against
EN ISO 16000-9 for volatile organic compounds (VOC) and are fully REACH compliant and free from chromates.

| Component Guide

Hover over or click the hotspots below to see product information.

Classic_Exploded

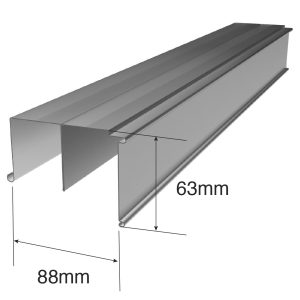

TOP TRACK

1656

(Track available in range of
finishes to match frame)

SOFT CLOSE

15kg USC-015
30kg USC-030
50kg USC-050



TOP GUIDE/WHEEL

Top Guide 4020
Top Wheel 5023
Top Wheel (soft close) 2848

RAIL

4mm 4058
8mm 4078

(Rails available in range
of finishes shown above)

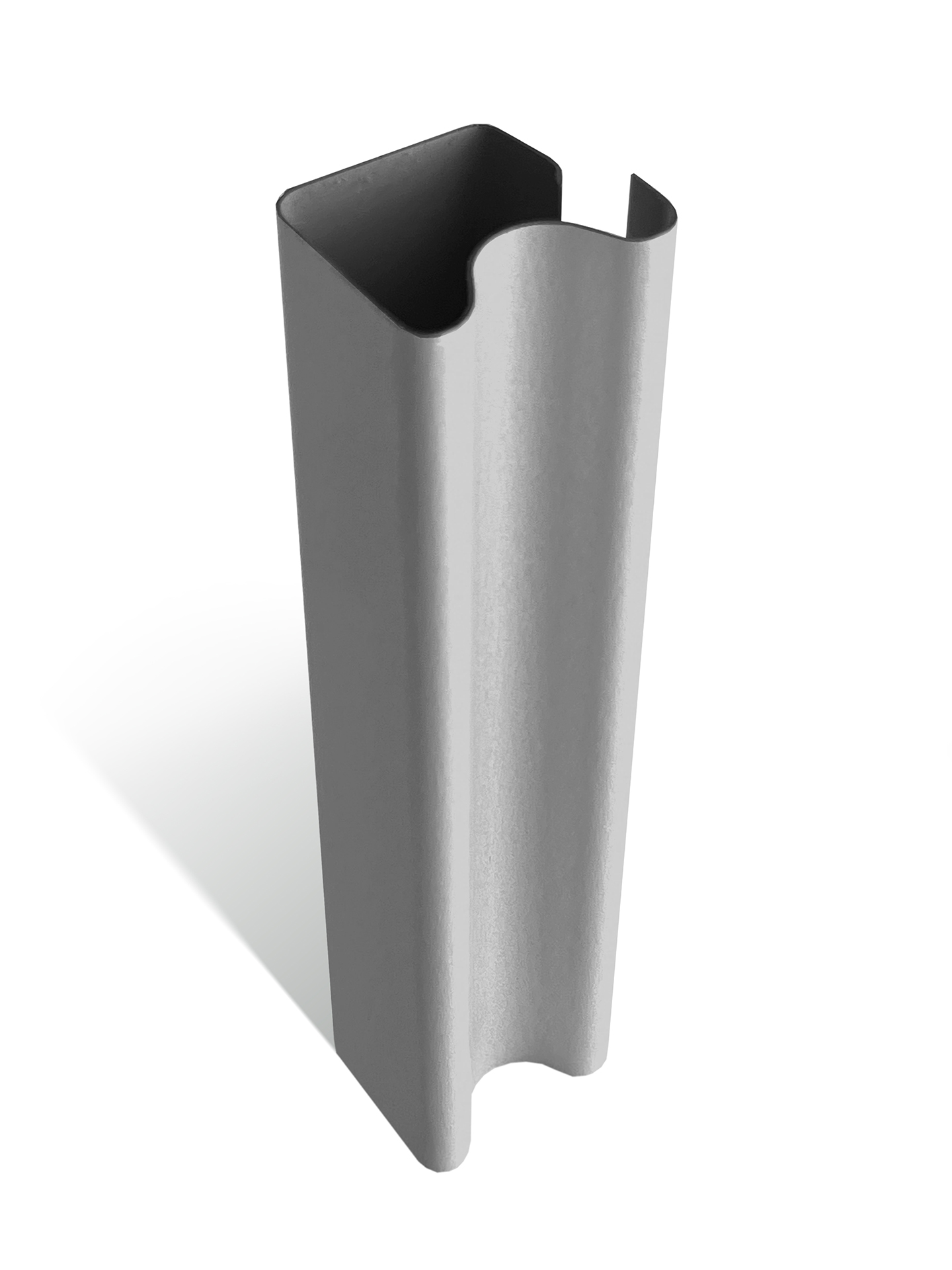

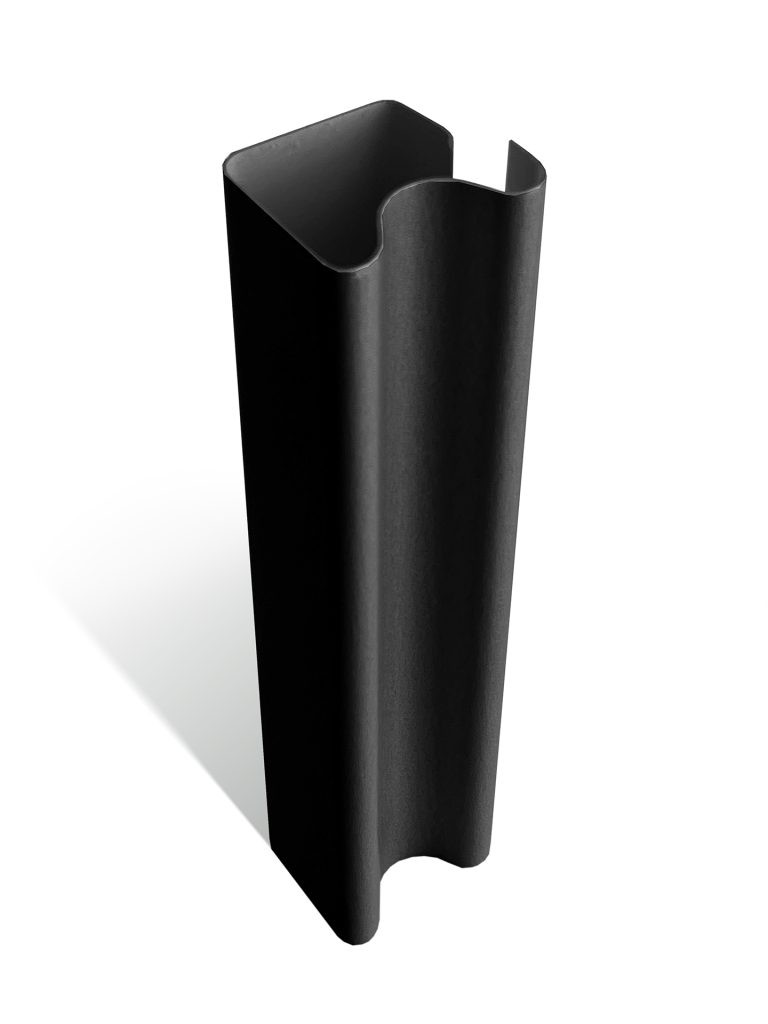

STILE

4mm 3037
8mm 3087

(Stiles available in range
of finishes shown above)

H-SECTION

4mm 2704
8mm 2708

(H-section available in range
of finishes shown above)

BOTTOM WHEEL

Standard wheel with flag
30KG 4264Y-030ZGY
50KG 4264Y-050ZGY

Suspension wheel
3228-050ZBK

BOTTOM TRACK

2044X

(Track available in range of
finishes to match frame)

Classic_Exploded

TOP TRACK

1656

(Track available in range of
finishes to match frame)

SOFT CLOSE

15kg USC-015
30kg USC-030
50kg USC-050



TOP GUIDE/WHEEL

Top Guide 4020
Top Wheel 5023
Top Wheel (soft close) 2848

RAIL

4mm 4058
8mm 4078

(Rails available in range
of finishes shown above)

STILE

4mm 3037
8mm 3087

(Stiles available in range
of finishes shown above)

H-SECTION

4mm 2704
8mm 2708

(H-section available in range
of finishes shown above)

BOTTOM WHEEL

Standard wheel with flag
30KG 4264Y-030ZGY
50KG 4264Y-050ZGY

Suspension wheel
3228-050ZBK

BOTTOM TRACK

2044X

(Track available in range of
finishes to match frame)

| Technical Information

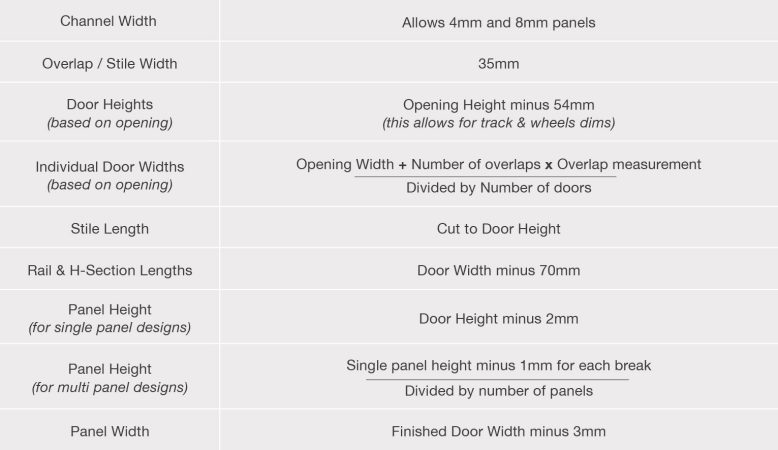

How to calculate door dimensions inc’ overlap widths. Click on the table below for more information.

Speak to your account manager or email Spacepro Hardware for further details on door configurations.
